100GHz Guassian AAWG Flat-top Athermal AWG Standard Metal Box

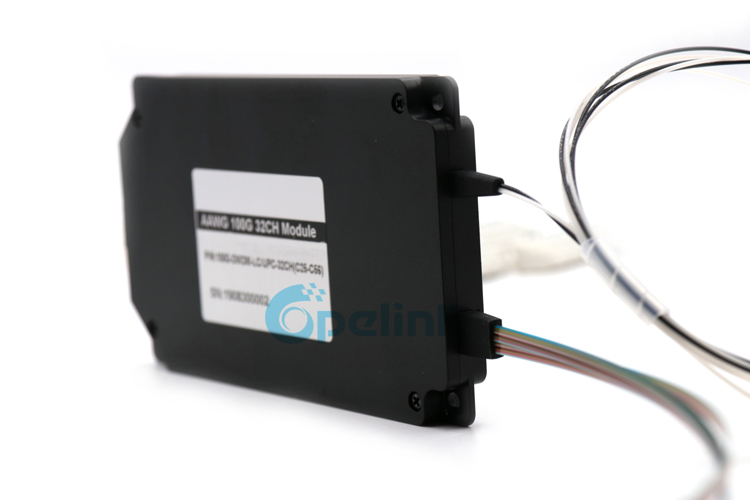

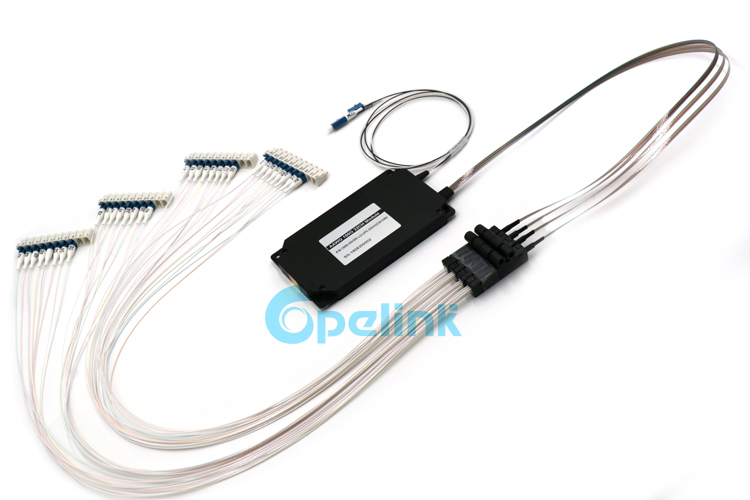

Opelink Athermal AWG DWDM module is made using silicon planar technic.It adopts non-hear sensitive structure eliminating the need for chip temperture control. This product is of compact design, low insertion loss, low PDL, and high channel isolation.
INQUIRY
Description Parameters Company Profile Related Product
Description:
Athermal AWG (Athermal Arrayed Waveguide Grating) Mux/DeMux Modules are part of a series of high performance products
based on silica-on-silicon planar technology.
It operates at 50GHz or 100GHz channel spacing ITU Grid DWDM wavelengths from
1526nm to 1565nm. The AAWG DWDM can be used
 to replace the filter-type DWDM for cases where no power is available.




Features
MUX/DEMUX Functionality
Compact Package
Multi-channel Number

Telcordia GR-1209/1221 compliant
Athermal Design, Electrical Power is Not Required
Low Insertion Loss,Low PDL,High Channel Isolation

Applications
DWDM Transmission
Metro Area Networks
Long-haul Networks
PON Networks
Building Blocks for ROADM

Building Blocks for VMUX

Order Information

Filter Mode Channel Spacing Operating Band Channel Number First Channel Common Length Ribbon Fiber Length Connector Type
F=Flat-top
G=Gaussian
B=Broad Gaussian
100=100GHz
50=50 GHz
C=C Band
L=L Band
CL=C&L Band
X=Others
1016=
16 channel

1032=
32 Channels
1040=
40 Channels
1048=
48 Channels
XX=Others
C21=C21
C
22=C22
L71=L71
 …

(Refer to ITU Channel Table)
0.5M=0.5M
1M=1M
XX=OTHER

0.5M=0.5M
1M=1M
XX=OTHER

FU=FC/UPC
FA=FC/APC
SU=SC/UPC
SA=SC/APC
ST=ST/UPC
LU=LC/UPC
LA=LC/APC
00=None
X=Others














Specifications:
Parameters AAWG DWDM MUX/DEMUX
Channel Space (GHz) 50GHz 100GHz
Pass Band Type Flat-top Gaussian Flat-top
Central Wavelength ITU-T Grid
Grade Typ Min Typ Min Typ Min
Channel Number 80/96 32/40/48
Wavelength Accuracy (nm) ±0.04 ±0.05
Pass Band @1dB (nm) >0.2 >0.2 >0.4
Pass Band @3dB (nm) >0.4 >0.4 >0.6
Insertion Loss (dB) <7.0 <6.0 <4.0 <3.5 <6.5 <5.0
Adjacent Crosstalk (dB) >26 >26 >23
Non-Adjacent Crosstalk (dB) >26
Total Crosstalk (dB) >20 >21
Return Loss (dB) >40
Ripple (dB) <1.5 <0.5
Uniformity (dB) <1.5
Polarization Dependent Loss (dB) <0.7 <0.6 <0.5 <0.4
Polarization Mode Dispersion (ps) <0.5
Chromatic Dispersion (ps/nm) ±30 ±20
Operating Temperature (℃) -575
Storage Temperature (℃) -4085
Note:
1.All the data above does not include connectors.
2.For more details, please contact our sales.
