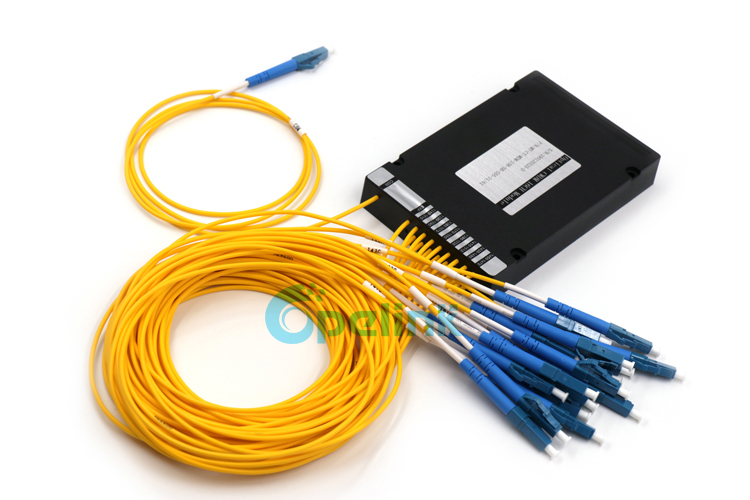

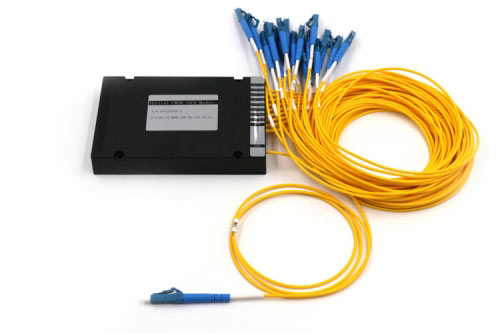

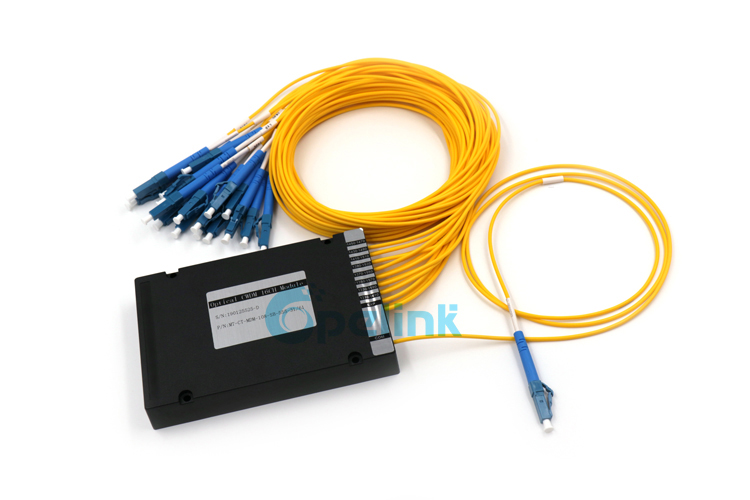

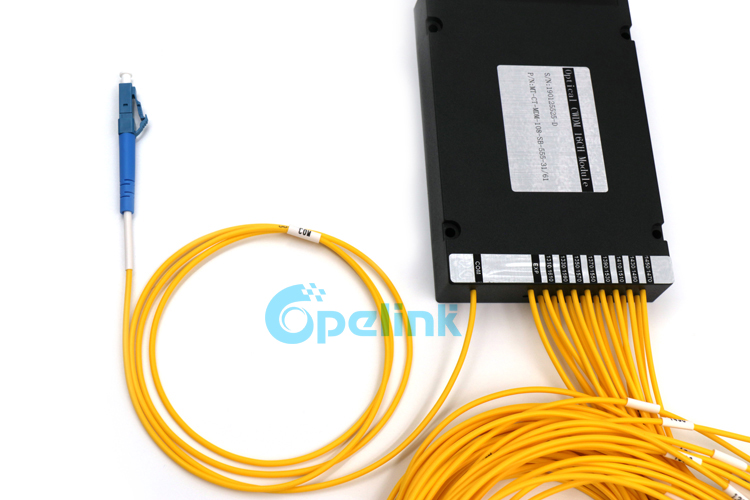

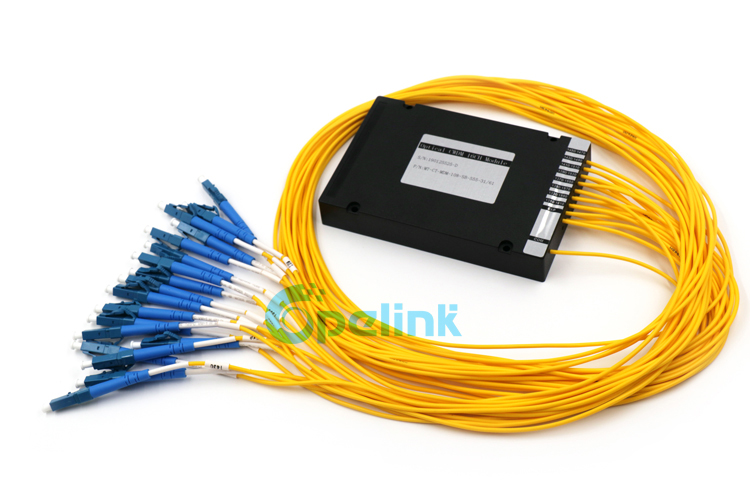

16+1CH Optical CWDM Mux/Demux Module , ABS Box , 2.0mm LC/PC

Opelink filter Wave length Division Multiplexer(WDM) is a product that is based on dielectric thin film technology.Opelink's WDM device is Telcodia GR-1221-CORE qualified and RoHS compliant, strong coating and passive packing capabilities.
INQUIRY
Description Parameters Company Profile Related Product
Description:
Coarse Wavelength Division Multiplexer (CWDM) Utilizes Thin Coating Technology and Proprietary Design of Non-flux Metal Bonding Micro Optics Packaging.
It provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path.


Features:
Low insertion loss, low PDL
High  Isolation
Compact  Design
Good channel-to-channel uniformity
High Reliability and Stability
Compliance with Telcordia GR-1221/1209

Application:
CWDM System
PON NET Works
CATV LINKS


Order Information:
Type Upgrade Port Port Wavelength Pigtail Fiber Length Connector
(Input-Output)
Package
M=Mux
D=Demux
M+D=Mux+ Demux


U= Yes
0= No
1002=1X2   1004=1X4
1008=1X8
1016=1X16
XX=other
27=1270
47=1470
49=1490
61=1610
Or
271=1271
471=1471
491=1491
611=1611



L=900um loose  tube
2=2.0mm
3=3.0mm
B= baare fiber
A= Adaptor
S1=G652D
S2=G657A1
X= other
0.5M=0.5M
1M=1.M
X=other
SU=SC/UPC
SA=SC/APC
FU=FC/UPC
FA=FC/APC
ST=ST/UPC
 LA=LC/APC
LU=LC/UPC
 00=NONE
XX= other
01,02,03,04,05
H,L,U,G,X

Tags:
Fiber Optic PLC Splitter  | Optical CWDM/DWDM/AWG  | FTTH Drop Fiber Optic Cable  | Fiber Optic PatchCord/jumper/Patch cable  |
Fiber Optic Fast Connector  | Optical Switch  | Fiber Optic Adapter  | Fiber Optic Attenuator  | Fiber Optic Cable TerminalBox |

Optical Specifications:
Parameter Value
Channels Number 2 4 8 16 18
Central Wavelength(nm) ITU-T Grid
Bandwidth(@0.5dB Pass band)(nm) ITU-T ±6.5
Channel Pass band(nm) 20
I.L(dB) Typ. 1.2 1.6 2.2 3.2 3.8
MAX. 1.4 1.8 2.8 5.0 5.6
Ripple(dB) ≤0.3
PDL(dB) ≤0.10 ≤0.15 ≤0.20 ≤0.25 ≤0.30
Isolation(dB) Adjacent Channel ≥30
Non-adjacent Channel ≥45
Directivity(dB) ≥50
R.L(dB) ≥45
Operating Temperature(℃) -5~+75
Storage Temperature(℃) -40~85
Note: All the data above does not include connectors
